DC Electronic Load Battery Capacity Tester 400W 150V 40A O787533
DC Electronic Load Battery Capacity Tester 400W 150V 40A O787533
High Precision & High Stability: Optimized heat dissipation structure, high power density and digital control mode, higher precision, good stability, RS485, 232 communication interface, MODBUS protocol.
Load Mode: Low CC, CV, CW, CR four basic load modes, low input or reverse connection protection and alarm, with multiple load online synchronous operation.
Protection Function: With over voltage, over current, power supply, over temperature protection function, low voltage remote measurement function.
Automatic Test Function: with external I / O trigger signal, PASS, FAIL command, powerful interface friendly PC software support.
Multi-test Function: low 10 KHZ dynamic test function; low battery capacity test function; low battery internal resistance test function; low overcurrent protection point/time test function; low fan PWM control, power switch power supply 110VAC/220VAC switching use.
Specification
Model: KP184
Power plug: US plug
Power input:
Voltage: AC 110V/220V±10%, 50±2Hz
Power consumption: < 20 W
Load input:
Load voltage: DC 1 -150 V
Load current: 0-40A
Load power: 0-400W
Measurement accuracy:
Current: ±0.05%+5mA
Voltage: ±0.05%+5mV
control precision:
Current: ±0.05%+5mA
Voltage: ±0.05%+5mV
Communication method: RS232/RS485
Protection:
Overvoltage (OV): greater than 152 V off load
Over temperature (OT): 85 ° C
Over power (OP): single channel 410W
Power input fuse: 0.5A
Ambient temperature range
0～500C
Ambient humidity range: 10~90% RH
DC input terminal to chassis withstand voltage: ±500VDC
DC input to chassis insulation resistance: >20MΩ, 500VDC
AC input to chassis insulation resistance: >20MΩ, 500VDC
Dimensions (mm) L × B × H: about 300 × 90 × 190
Packing size: 38.5*16*27cm
Weight: 4.5kg

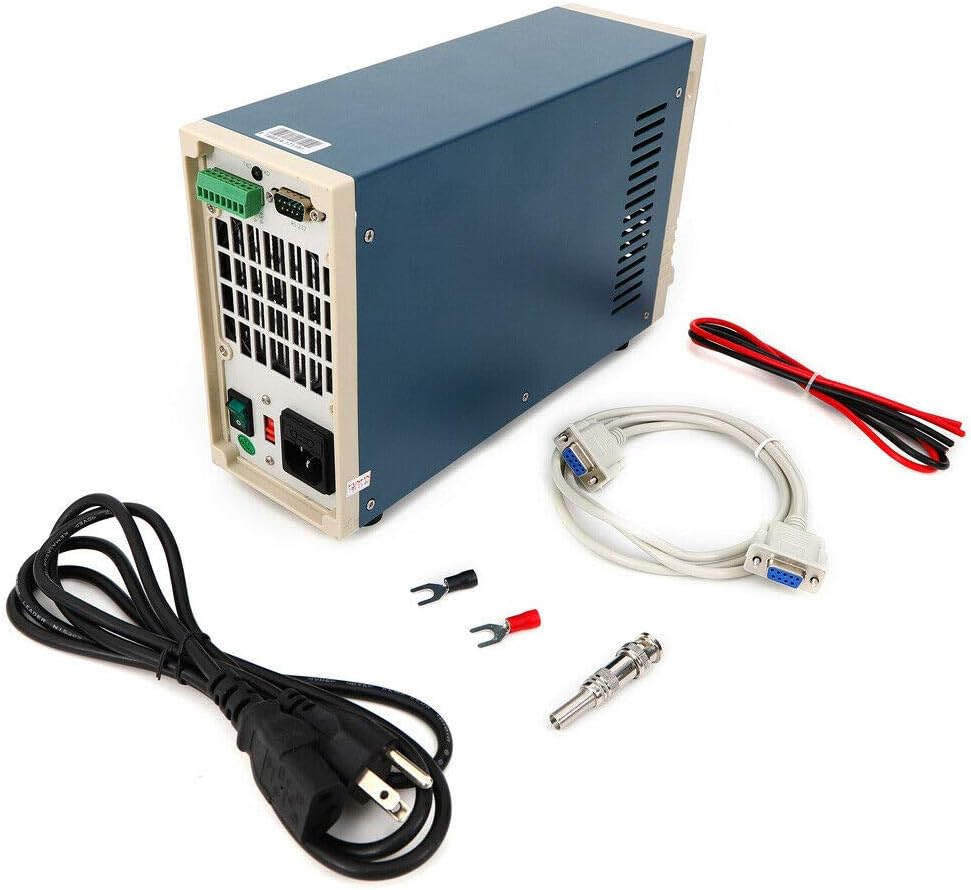

Package
1 x KP184 DC Electronic Load
1 x plug
1 x remote compensation terminal
2 x positive and negative test terminal
1 x 232 communication cable
2 x test cable
1 x user manual
